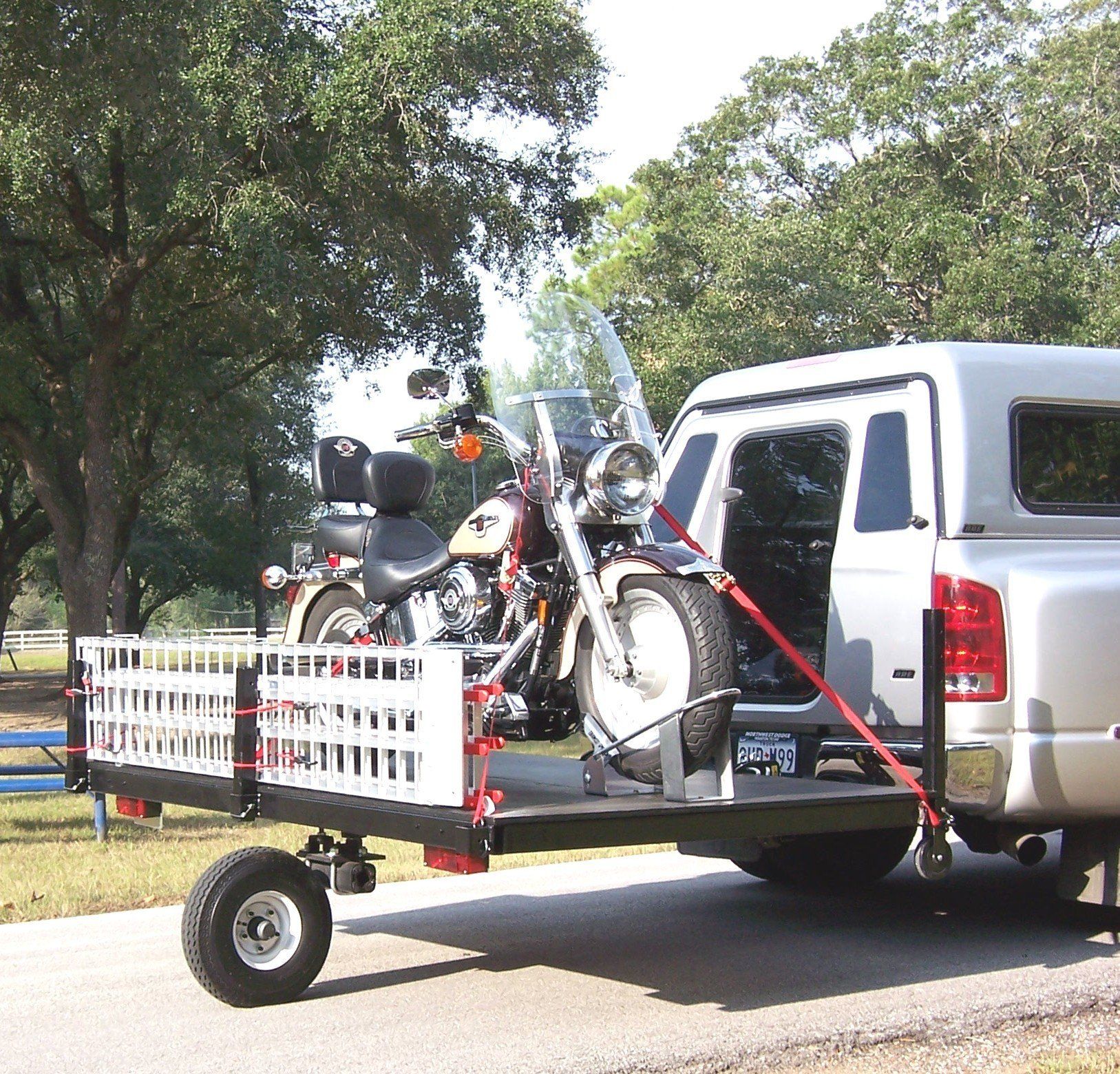

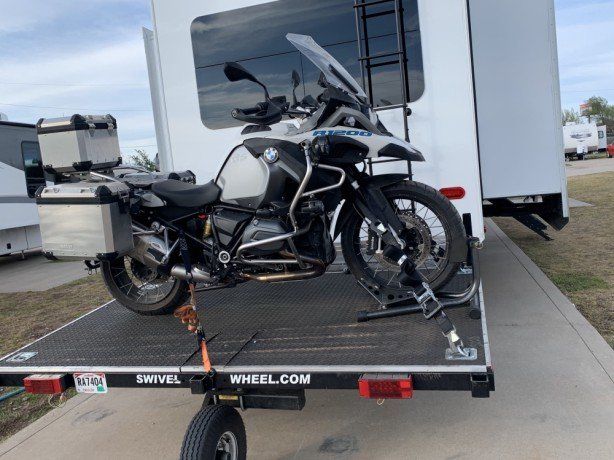

Swivelwheel 58 Single Wheel

Swivelwheel-58 Single Wheel

The Swivelwheel-58 Comes Standard with a Single Point Hitch Bar, And the Dual Point Hitch Bar is an Additional Upgrade Option.

The Swivelwheel 58 Starts at ($2395.00) It comes standard with our Single Point Hitch bar / But for anything over 600Lbs we recommend upgrading to our Dual point Hitch Bar for ($175.00) or Both for ($225.00).
Additional Options Include:
1.) Spare Tire and Wheel ($85.00)
Locking Motorcycle Wheel Chock ($189.00)
3.) Power Ramp Loader ($795.00)
4.) 3-Piece Loading Ramps ($395.00)
Cruiser Ramp Motorcycle Loader ($1995.00)
6.) 6-Inch Platform Extension ($280.00)
Swivelwheel System Cover

      Below is a video of our Power Ramp Option

Swivelwheel 58 Specs

Deck Dimenson = Width: 8' / Length 5'
Deck Perimeter style =  Rectangular
Decking Material = 3/4" Treated/Painted Plywood
Frame Materials = Welded Tubular Steel
Tie-Down Locations = 2" x 2" Stake Receivers (3 on front and 3 on rear)
Suspension = Single Torsion Suspension with Friction plate and pad
Wheel and Tire = 5.70x8 / C/ 6Ply / 1075Lbs / 75 PSI
Loading Ramp Option = 3 Piece Ramp System / 2 Outside Ramps = 12" Wide / x7'5" Long w/ 70 Pound Load Rating, Center Ramp = 15" Wide x 7'5" Long, W/ 1500 Load Rating.
DOT Lighting = (All Swivelwheel Products Meet DOT regulations)
Tow Vehicle Mounting = 1.) Single Receiver Hitch Mount Utilizes a standard class-III or Class-IV receiver on the tow vehicle. 2.) Dual Receiver Hitch Mount utilizes two individual receivers mounted to the tow vehicle for greater equalization of the deck weight to the tow vehicle.
Tow Vehicle Compatibility = ALl full size Pick-Ups and SUV's, Class-A and Class-C Motor Coaches, Fifth Wheel Trailers.
Motorcycle Wheel Chock = Compatible
Weight Limit 1000 Pounds
Deck Height = Level @26 3/4"
Loading direction = Loads from street/curb or from the rear
Flip Up Deck Feature = Yes
