10 to 15 minute Assembly and Removal from the Motorhome.
Removes from the motor coach in five
components with the removal of 5/8" or 3/4" hitch pins.
WATERPROOF REMOTE ELECTRIC WINCH SWITCH
2500 POUND WINCH CAPACITY WITH TWO PULLEY'S.
Winch and cable are centrally located
on the system, giving a straight up and down motion, instead of pulling from the side of the coach and around a corner.
No hydraulic fluid to leak, pumps
to fail, hoses to crack, or valves to stick open or closed. You do not have to make room for the hydraulic pump and reservoir
in one of your compartments.
No hydraulic hoses to disconnect when
removing the lift from the motor coach.
10 AVAILABLE TIE DOWN POINTS
HIGH STRENGTH GR-8 OR BETTER BOLTS AND FASTENERS
SHORTEST MOTOR COACH TO TOW VEHICLE DISTANCE
In some cases, the standard tow bar extension
may be shortened an additional 10".
INTEGRATED LIGHTING WITH TOW VEHICLE CONNECTION STANDARD
Lighting system is already mounted to the Cruiserlift
system and synchronized with the motor coach tow plug. A tow vehicle interface plug is already added to the system.
Cruiserlift system is shipped standard with a 7-pin round trailer plug for the coaches trailer receptical. There is another
vehicle 6-pin connector for the towed vehicles lighting. There are only 4 leads picked up by the Cruiserlift system. These are
the Running Lights, RT Turn, LT Turn, and Brake lights. If other wiring is needed, check with your installer.
STANDARD KICK STAND TRAY
No need for a 4 x 4 block of wood, or a neighborhood
block party to load your motorcycle. Its as simple as riding the motorcycle into the tray, drop the kick stand onto the kick
stand tray, and get off of the bike.
BAKED ON BLACK SEMI-GLOSS POWDER COAT PAINT
For a great looking, long lasting finish. May
be touched up if scratched.

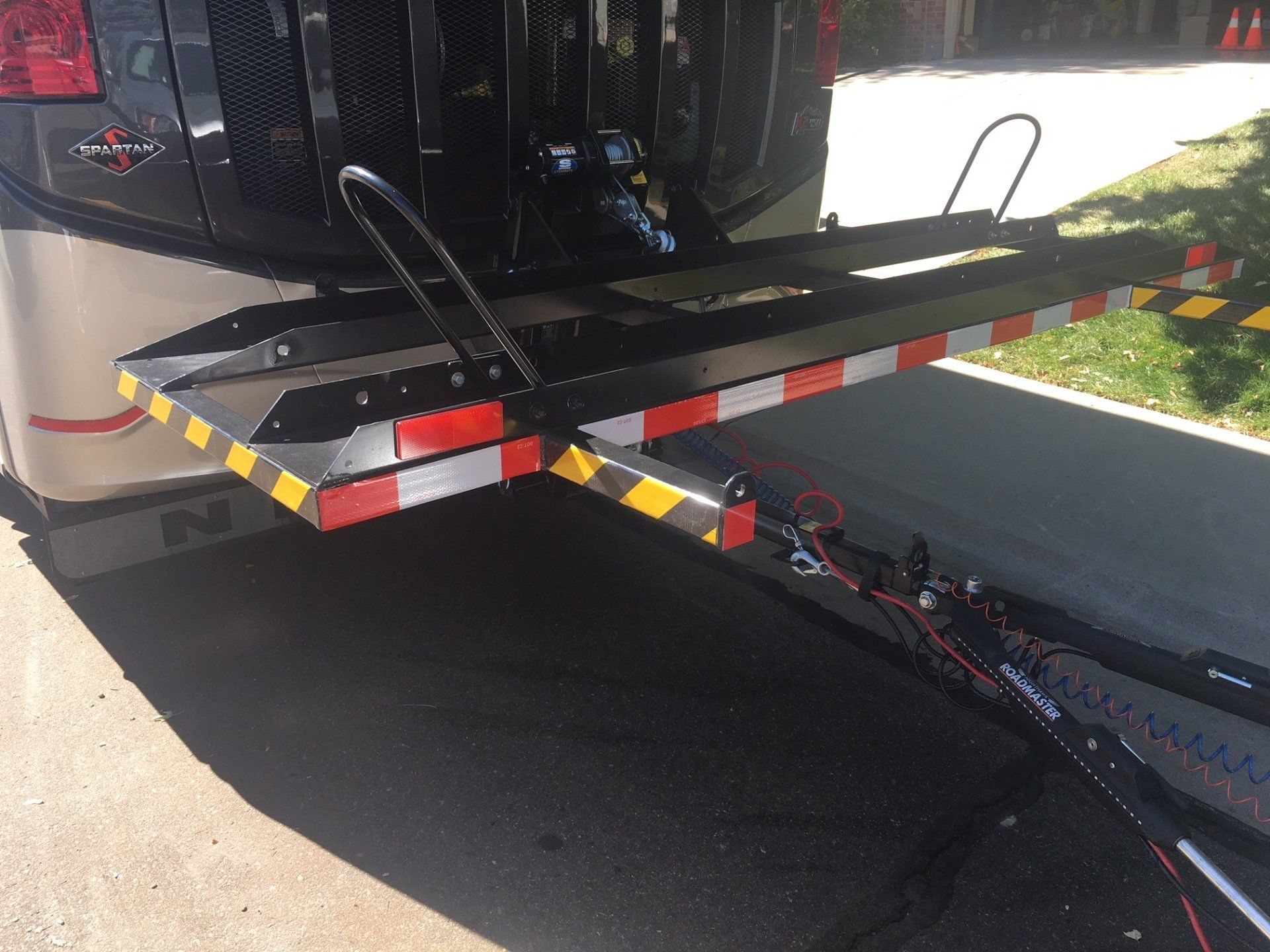

ONE PIECE MOTORCYCLE TRAY
STANDARD TOW BAR EXTENSION, ONLY 18 POUNDS
CRUISERLIFT TOW BAR EXTENSION
32" LONG x 18 lbs
The tow vehicle pulls straight from the motorcycle tray frame. Others may pull from the tray frame, which is continually
trying to pull the bike to the ground. The Cruiserlift tow bar extension is only 32" in length and weighs 18 pounds. Others
are as much as 5 feet long and attach to the bike tray frame as shown below.
STANDARD 6000 POUND FLAT TOW CAPACITY
Most system have a 5000 pound flat tow rating.
1000 POUND MOTORCYCLE CAPACITY
Some systems may only have an 800 pound weight
MEETS DOT G-FORCE LOAD STANDARDS
The Cruiserlift system is fully tested.
ENGINEERING LOAD AND STRESS ANALYSIS
40" GROUND CLEARANCE FROM THE BOTTOM OF THE MOTORCYCLE TRAY TO THE
Some system only have a 27" or lower ground clearance.
This allows the motorcycle tray to drag the ground while driving over steep road or driveway transitions. By having
a 40" clearance, the bike is kept from most road grime and debris coming from under the coach. This also allows for the tow
vehicle to be as close to the coach as possible. Refer to the
ALL THREE RECEIVERS UTILIZED IN THE HITCH ASSEMBLY
Most systems include a three receiver system.
The Cruiserlift system utilizes all three receivers when the system is being used. Others may only use two receivers
PRODUCT LIABILITY INSURANCE
Since we have pushed the issue of product liability insurance, others now say
that they have it. Question the limits of the policy!
OPTIONAL 1/4" ABS MIST SHIELD
The optional mist shield will reduce the amount of mist or debris
from reaching the motorcycle.
